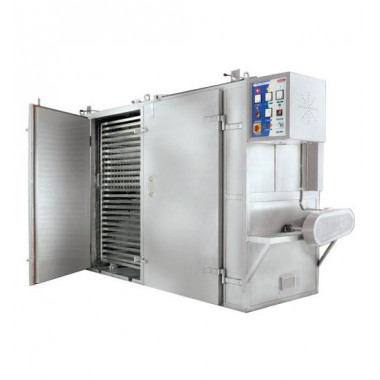

Tray Dryer Machines are a type of powder dryer machines that are commonly used in cases where quantity of moisture in the product is more and the materials have to be dried at a low temperature for long duration. Our company provides tray dryers in a range of different number of trays, according to the requirement of the product and the industry. Tray dryers can be steam and electrically heated.
Add to WishlistCategory: Granulation SectionOperation: Air Circulation: Air circulation is done by specially designed recirculation blowers inside the dryer. The blower capacity, static & design depends on the size and model of dryer.
Heating: Dryers are normally supplied with either steam/electric/thermic fluid/hot water heating system. Suitable heating coils/calorifiers/controlling unit are provided in the dryers.
Temperature Control: Temp control system is done by electronic digital temp controller fitted in the control panel. The temp control in the dryer is fully automatic.
Specifications:
| Model No. | CP-TDM-1 | CP-TDM-2 | CP-TDM-3 | CP-TDM-4 |
| Loading capacity | 12 Trays | 24 Trays | 48 Trays | 96 Trays |
| Internal Dimension In mm | 840 X 860 X 840 | 840 X 860 X 840 | 1020 X 930 X 1830 | 1960 X 930 X 1830 |
| No of Doors | One | One | One | Two |
| No of Blowers | One | One | One | Two |
| No of motors/H.P.3 PHASE 415 VOLTS. | 1/0.5 H.P.3 phase 415 volts | 1/0.5 H.P.3 phase 415 volts | 1/1 H.P.3 phase 415 volts | 2/1 H.P.3 phase 415 volts |
| Electrical Heating Load for 100/200/300 °C | 6 kw/9 kw/12 kw | 6 kw/9 kw/12 kw | 9 kw/15 kw/18 kw | 15 kw/21 kw/27 kw |
| Steam Heater No. of coils. | 2 | 2 | 2 | 2 |
| Steam consumption | 45 LBS/hr | 45 LBS/hr | 60 LBS/hr | 80 LBS/hr |
| Insulation in mm 100/200/300 °C | 50/75/75 | 50/75/75 | 50/75/75 | 50/75/75 |
| No of Trolleys | Rack System | Rack System | One | Two |
| Tray Size | 812 X 406 X 31 | 812 X 406 X 31 | 812 X 406 X 31 | 812 X 406 X 31 |
| Trolley Dimension | Fixed Racks | Fixed Racks | 840 X 960 X 1780 | 840 X 960 X 1780 |
Features :-
NOTE : Technical details, specification & designs are subject to change without any prior notice.
